CostarHD Products

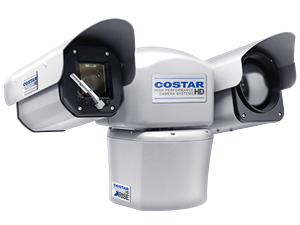

RISE 4290HD Day/Night Positioner

Outdoor IP67

 H.264 Dual Spectrum Visible and LWIR

Call for pricing

CostarHD's 4290HD dual spectrum positioning system is the latest addition to CostarHD's RISE family of products, combining crystal clear HD visible spectrum imaging along with standard resolution LWIR night vision imaging for delivering unmatched performance at an affordable price.



The 4290HD visible spectrum camera provides full 1080p imaging with 30x optical zoom, delivering full frame rate HD images over the entire zoom range for very cost effective long-range surveillance applications.



True day/night technology using a removable IR cut filter produces exceptional low light sensitivity down to 0.00025fc. The visible camera provides defog/dehaze image processing, enhancing video performance in foggy and hazy conditions encountered in surveillance and traffic monitoring applications.



The 4290HD night vision camera offers a choice of uncooled VOx 640x480 LWIR FPA detector with continuous zoom or fixed focal length hard carbon coated lenses. The 4290HD thermal imaging delivers high quality video, even in extreme conditions such as total darkness, smoke, atmospheric haze or  dust, rain, light foliage, and most types of fog.

Superior Visible Imaging and Optics:

  • Superior 1080p image quality
  • Powerful 30x optical zoom with 12x digital zoom (360x total)
  • Image defog/dehaze analytics
  • Electronic image stabilization (EIS)
  • Dark scene enhanced intensity
  • Bright source whiteout reduction


Rugged Construction:

  • Operates in hurricane force winds
  • Built-in electrical transient/surge protection to CISPR 24 levels
  • Precision positioning of 0.05°
  • Factory Purged and Pressurized IP67 protection
  • NEMA TS2 temperature range, -40°C to 75°C
  • Integrated faceplate wiper option
  • Inverted mounting capability


Advanced Night Vision Performance:

  • Night vision LWIR 8-14um spectrum
  • VOx uncooled micro bolometer technology
  • 640 x 480 resolution 17um FPA
  • Continuous zoom or fixed thermal optics options
  • Scene-based auto-focus (zoom options only)


Flexible Installation and Seamless Interoperability:

  • ONVIF Profile S compliant
  • NTCIP 1205 compliant
  • Hybrid IP/analog video-serial PTZ operation
  • H.264 Base/Main/High profiles and MJPEG encoding
  • Web server configuration, operation and viewing
  • Single CAT5e cable with PoE++
  • Pendent, wall, pole and corner mounting bracket options

 Data Sheet (PDF)P:   Download

 A/E Specs (DOC)P:   Download

 Install Manual (PDF):   Download

 CAD drawings (ZIP)P:   Download
