CostarHD Products

OCTIMA 3210HD Series

Network Thermal Imaging
Radiometric Detection
and Measurement System

Call for pricing

CostarHD is proud to showcase our latest intelligent Thermal Imaging Radiometric Detection and Thermal Measurement system.

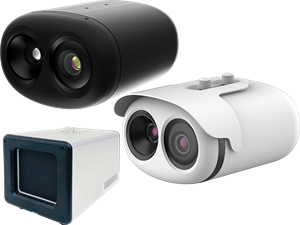

The CostarHD 3210HD series is a state-of-the-art thermographic system boasting both optical and thermal imagers. Using internal analytics, the 3210HD Series cameras produce a visible light image with thermal data overlaid on the image. Within a predefined alert area if the reading exceeds a specified temperature a virtual box will turn red and flash the capture value on the screen.

When installed with the 3212-9000 calibration device, consistent temperature readings can be captured with a high degree of accuracy. Thermographic cameras are intended to be used in schools, commercial, Retail, Financial, Nursing Homes, or Transportation environments. When used as part of a holistic system for screening, no solution is better positioned to deliver trusted and accurate results.

CostarHD always delivers years of clean, reliable images and backs it with a world-class two-year warranty.

Advanced Thermal Performance:

  • IRFPA uncooled micro bolometer technology
  • 320 x 240 and 400 x 300 resolution options
  • Superior thermal sensitivity of <50 mK
  • On-board temp-detection algorithm
  • Accuracy 0.3°C
  • Body detection, up to 16 Targets
  • Response Time 50ms
  • 14 color palettes


Superior Daytime Imaging:

  • Visible spectrum daytime color camera
  • HD 1920 x 1080 image quality
  • Autofocus, wide view optics
  • Supports daytime thermal imaging for improved situational awareness


Rugged Construction:

  • Wide operating temperature range
  • Durable IP66 ingress protection
  • 2 year standard warranty


Installation and Interoperability:

  • ONVIF Profile S
  • H.265/H.264 and MJPEG encoding
  • Single CAT5e/CAT6 cable with PoE+
  • Wall, Ceiling mounting options

 Data Sheets (PDF):   Download

 Installation Manuals (ZIP):   Download

 Operational Manuals (ZIP):   Download



P  Premium Content: Login to download

 CMS Video Management SoftwareP:   Download



P  Premium Content: Login to download
