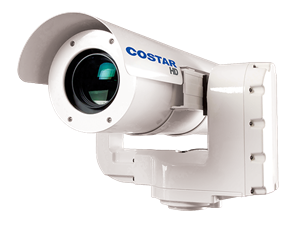

CostarHD’s 8800HD series combines full HD image resolution with high powered HD performance lens optics for delivering unprecedented image quality and detail for long-range surveillance applications in the visible spectrum.
By comparison, CostarHD’s 8800HD series can deliver up to six times the resolution and detail of traditional standard definition long range camera systems.
In addition to the superior image quality and excellent long-range zoom optic capabilities, the 8800HD series delivers video across standard network infrastructures, with H.264 image compression technology using fractions of the bandwidth traditional MPEG4 or MJPEG requires.
The 8800HD superior image quality is centered around a 1/2.7” CMOS 1080p30 progressive scan sensor. Image performance and color reproduction are superb even under challenging lighting conditions. In night mode, the camera enhances low light viewing by switching the IR (infrared) filter out of the optical path and providing a monochrome image. The camera switches from color to monochrome mode automatically by sensing the illumination level or by remote operator command. Image properties including exposure, gain, backlight and white balance are controlled automatically, or may be overridden for precise user adjustments as needed.
Long-range surveillance is achieved by the integrated HD quality zoom lens optics, with focal range options of 12 mm to 660 mm or 16.7 to 1,000 mm. Both lens options include remotely controlled zoom extenders which can be inserted in the optical path increasing the maximum focal range up to 1,680 mm (0.2° HAFOV) or 2,000 mm (0.17° HAFOV)
The focus assist function insures crisp video with the touch of a button as scene views change.
The 8800HD series offers a standalone camera system or a fully integrated long-range HD camera positioning system. The 8800HD camera positioner includes a variable hi-speed pan and tilt drive, 360O continuous pan (azimuth) and +/- 30O tilt (elevation) movements. Manual control positioning speeds range from 0.05O to 45O per second, with preset speeds reaching a maximum 90O /sec, resulting in 180O movements in less than 3 seconds. Preset and directed absolute position movement accuracies are precise to within 0.05O, insuring camera views are on target.
The 8800HD provides a full function web server, allowing complete administrative and operator control capabilities. Administrative features include configuring network settings, user password assignments, setting video and streaming properties, defining camera positioning presets/tours, assigning camera ID labels.
The 8800HD is designed to operate in extreme weather, with its IP67 sealed and pressurized enclosure protection. This eliminates the effects of water intrusion, pollutants and corrosives. It is designed to operate in a broad temperature range, from winter in the Arctic to summer in the desert, with heaters and fans, and electrical and mechanical components that are rated for the full range.
The 8800HD Series will deliver years of reliable service and clean images. It is backed by a two-year limited warranty.
A/E Specs (DOC)P: Download
CAD drawings (ZIP)P: Download
P Premium Content: Login to download
